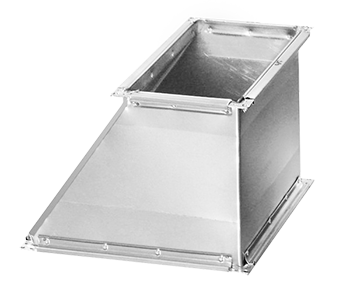

Transitional Offset

Description of your image

  • Pacific Duct Inc. Rectangular Ducts and Fittings are fabricated from galvanized steel per ASTM-A53-965 and are in accordance with the latest edition of SMACNA Duct construction standards.
  • Reference SMACNA tables 1” - 10” W.G. for construction standards and reinforcement schedule.
  • Options of stainless steel, aluminum, paint-lock, and other materials are available upon request.
  • All ducts are beaded on 12” centers, with first bead 6” from end for extra strength. Cross breaking is available upon request.
  • Standard duct lengths are 4’, 5’, or 6’. Other duct lengths are available in any length requested.
  • All slips and drives, nuts, bolts, gaskets, reinforcements and misc. hardware are included with duct work.
  • All ducts and fittings are available bare, lined, or wrapped.
  • All rectangular ducts and fittings are shipped assembled, unless otherwise specified.
Submittal Sheet
